Security

The following security considerations have been taken into account during the development of this software.

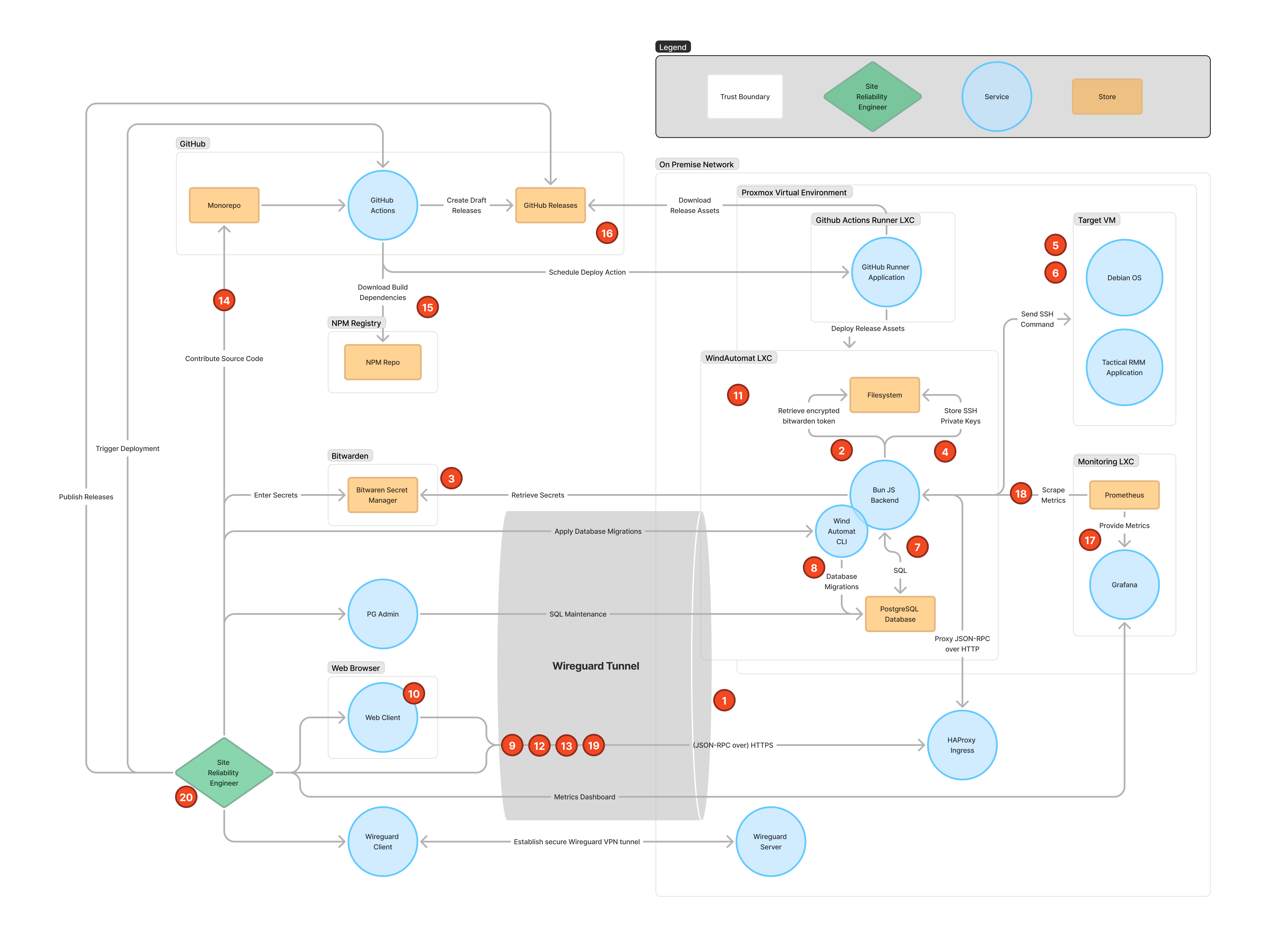

Diagram

Summary

Name	Value
Total Threats	20
Total Mitigated	18
Not Migitated	2

List of threats

#	Status	Title	Type	Process/Data Flow/Store	Description	Mitigations
1	Mitigated*	Unauthorized API access	Information disclosure, tampering with data, elevation of privilige	HAProxy Ingress	Unauthorized access could allow someone to brute force the basic auth credentials giving them access to the API	The reverse proxy only proxies requests from inside the onpremise network, access from outside requires a wireguard VPN connection. This effectively requires an attacker to gain physical access to the network in order to access the service.
2	Mitigated	Leaked Bitwarden Credentials	Information Disclosure	WindAutomat LXC	Leaked credentials would allow an attacker to retrieve secrets such as ssh private keys, api tokens, database password etc.	Encryption at rest of the bitwarden access token results in the decrypted secret only being stored in memory, preventing leaked credentials if an attacker gains access to the filesystem.
3	Mitigated	Leaked secrets, private keys, passwords	Information Disclosure, tampering with data, elevation of privilege	Bitwarden Secret Manager	Leaked secrets would allow an attacker to access servers, databases, apis, services.	All secrets are stored encrypted using the Bitwarden Secret Manager. Decrypted secrets are only available in memory with the exception of ssh private keys.
4	Mitigated	Leaked ssh keys	Information Disclosure, tampering with data, elevation of privilege	WindAutomat Server	Leaked ssh keys would allow an attacker to access servers and retrieve or tamper with data.	Private Keys are only stored in ephemeral storage. In addition, they are actively removed when no longer needed. On top of this, each machine is accessed using a separate private key. In case of a leaked key only one machine is compromised.
5	Mitigated	Unauthorized shell access	Information Disclosure, tampering with data, elevation of privilege	Target machines	SSH password authentication could be brute forced by an attacker	SSH password authentication is disabled on the target machines.
6	Mitigated	Unauthorized sudo access on target machines	Information Disclosure, tampering with data, elevation of privilege	Target machines	Passwordless sudo access could allow an attacker to execute arbitrary commands as root after gaining access	Passwordless sudo has only been enabled for the commands required to perform updates, limiting the extent of tampering as much as possible.
7	Mitigated	SQL Injection	Tampering with data, Information disclosure	PostgreSQL Database	Unsafe queries could be made by malicious actors when user input is not processed properly	Only supply user input to the database using parameterized queries. This is enforced by the postgres.js package used in the backend.
8	Mitigated	Unauthorized database migrations	Tampering with data	WindAutomat CLI	Unprotected access to database migrations could allow an attacker to change the database schema resulting in an incompatible database schema or data loss	Database migrations can only be applied by someone with console access and the encryption secret.
9	Mitigated	MITM API	Tampering with data, Information disclosure	JSON-RPC API	Insecure HTTP requests would allow for (Hu)Man in the Middle attacks	Upgrade HTTP requests to HTTPS and only proxy traffic on port 443 HTTPS.
10	Mitigated*	XSS	Tampering with data, Information disclosure	Web Client	Executing user supplied data could lead to malicious javascript execution	The Content Security Policy header is set to a restrictive value only allowing same origin for images and scripts and disallowing frames. The frontend is currently only used for unlocking the encrypted bitwarden token. This data is not executed. Once the frontend becomes more comprehensive, sanitization of user input is required.
11	Mitigated	Privilege escalation container escape	Tampering with Data, Information Disclosure, Elevation of privilege	WindAutomat LXC	Not limiting a container's capabilities could allow malicious actors to escape the container when remote shell execution is possible	The WindAutomat application is deployed in an unprivliged LXC with processes running as non root user to reduce the attack surface.
12	Mitigated	Privilige escalation Backend Requests	Elevation of privilege	HAProxy Ingress	Unauthorized access to the backend	The reverse proxy rejects all requests without correct Basic Auth credentials. Firewall rules prevent any access to the windautomat port that do no originate from the reverse proxy.
13	Mitigated	Data leak CORS Misconfiguration	Tampering with data, Information disclosure	Backend	CORS misconfiguration could allow unauthorized data access via malicious third party sites.	CORS Headers are set to only allow requests from our web client.
14	Mitigated	Leaked GitHub credentials	Tampering with data, Elevation of privilege	GitHub	Leaked credentials could allow an attacker to compromise the repository containing source code and deployment configuration	Two factor authentication using hardware keys mitigates against leaking credentials. Additionally, all commits require signing using private keys
15	Mitigated*	Vulnerable Dependencies	Tampering with data, Information disclosure	NPM Repo: Download Dependencies	Packages could contain vulnerabilities, allowing a wide range of attacks depending on the vulnerability in the package.	Usage of common, well maintained, lightweight libraries to reduce attack surface. Additionally, the number of dependencies is kept to a minimum.
16	Mitigated	Supply chain deployed binary	Tampering with data, information disclosure	GitHub Releases	A malicious actor could upload an untrusted binary which could then be deployed to the WindAutomat LXC	Releases can only be published by authorized people with access to the github releases. Additionally, the deployment action is always manually triggered by someone with repo access.
17	Mitigated	Privilege escalation / data leak grafana	Information Disclosure, Elevation of privilege	Grafana	Unauthorized access to the prometheus instance or grafana dashboards could disclose data attackers can leverage in an attack	Prometheus initiates the data scrape process, requiring tampering with dhcp or dns servers to supply malicious data, reading data and dashboards is only possible with password access to the grafana cloud instance
18	Mitigated	Logging/Monitoring failures	Denial of Service	Backend	Unexpected spikes in errors or request rates and response times can be indicators for an attack	Monitor the backend according to SRE by googles four golden signals: Latency, Traffic, Errors, Saturation. The metrics are visualised using a Grafana Dashboard. Alerting thresholds have been defined and are ready to be connected to alerting infrastructure.
19	Open	DOS:	Denial of Service	Backend	A malicious actor or a malfunctioning system could overwhelm the service with a extraordinarily high amount of traffic	Very limited protection due to budget restraints. Rate limiting at the haproxy ingress protects from unsophisticated DoS attacks.
20	Somewhat mitigated	human layer	Spoofing, Tampering, Repudiation, Information disclosure, Elevation of privilege	GitHub	Contributors could be compromised by phishing or social engineering attacks	All people with access to the project are experienced software engineers and/or IT administrators. Hardware keys are used for TFA to mitigate phishing attacks.
